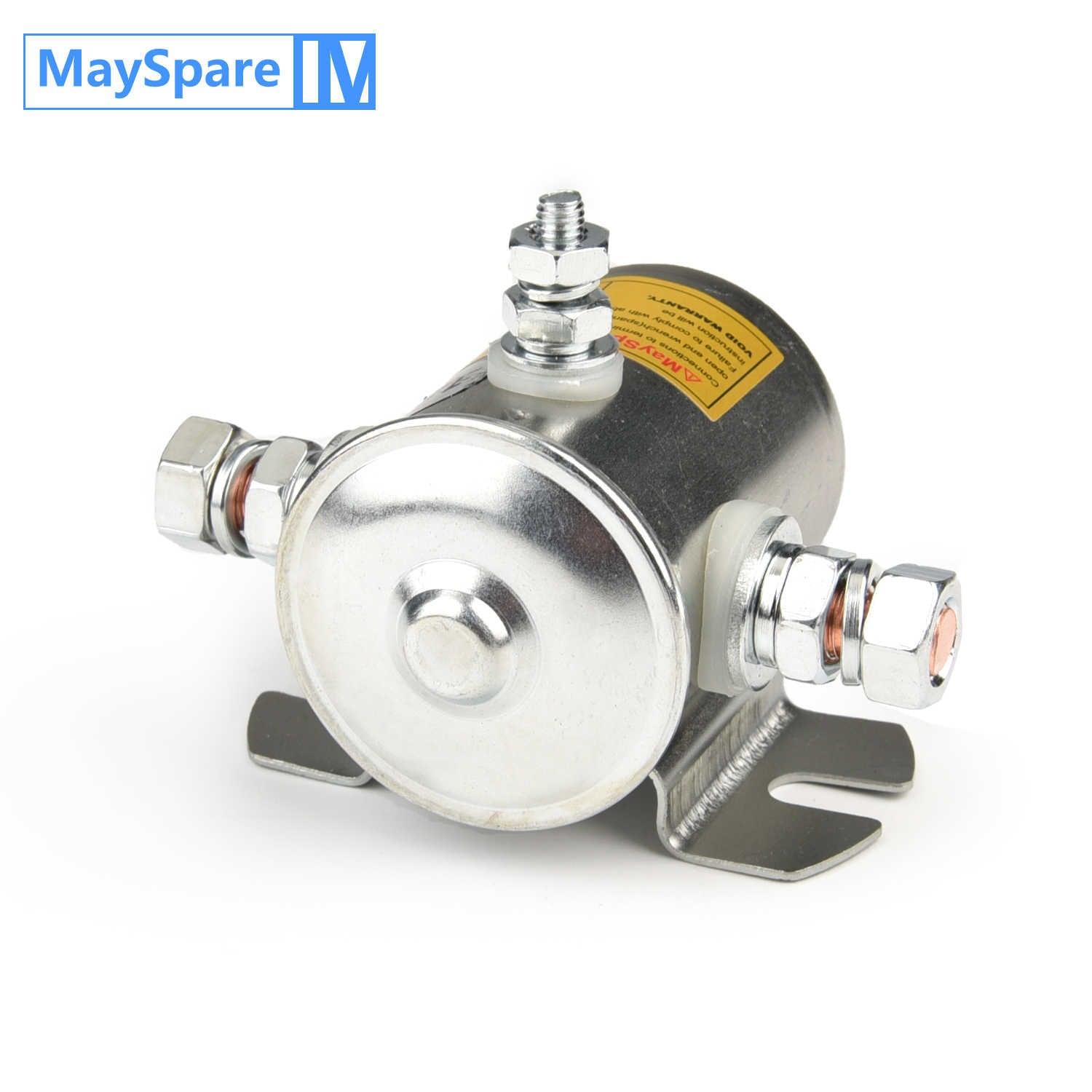

Contact point: Normally Open (NO)/ 2 Copper Point, Solid Shell/ Copper 5/16-Inch -24 thread. Note: If you need the product you received to use it for a long time in a low-voltage environment, please contact us to change the resistance.

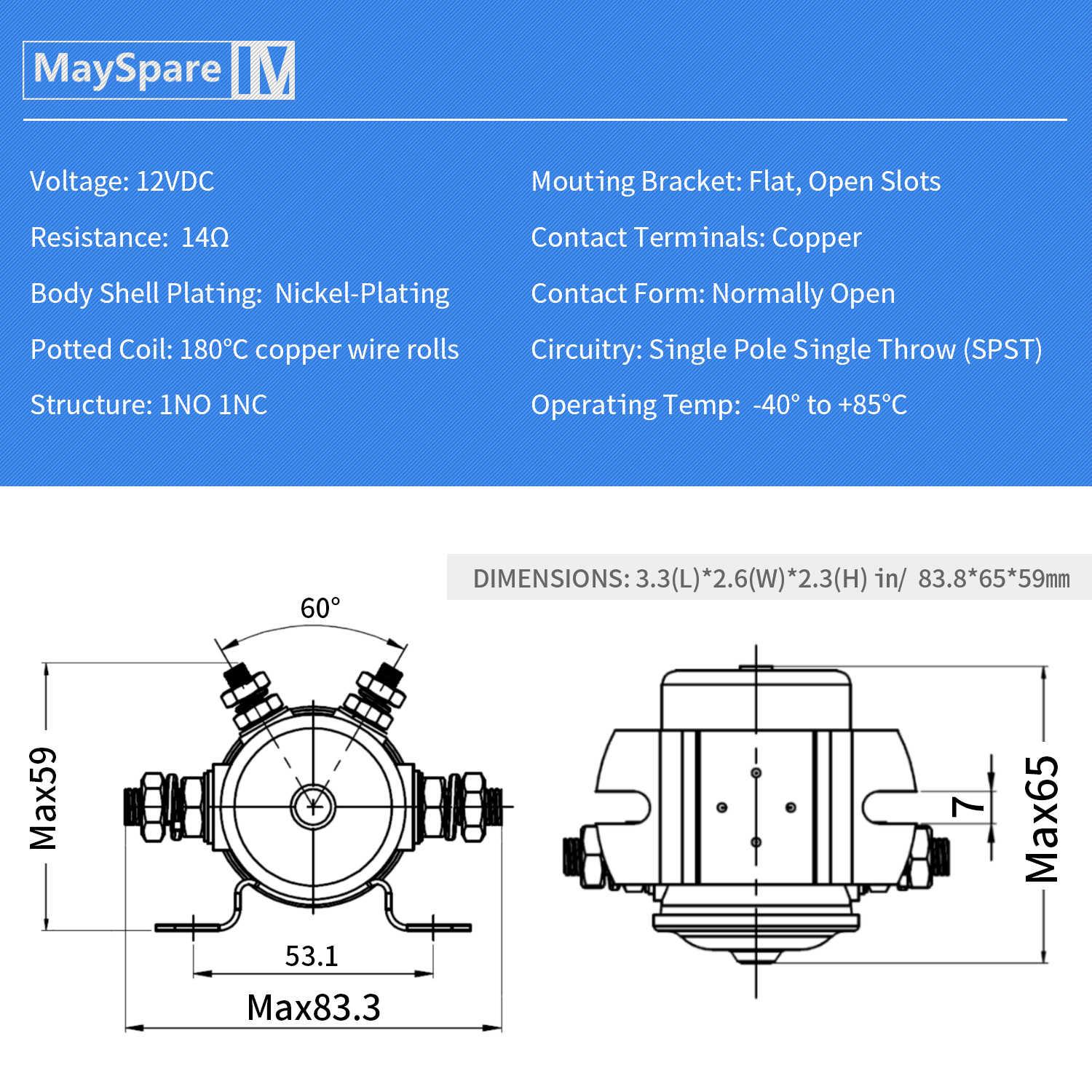

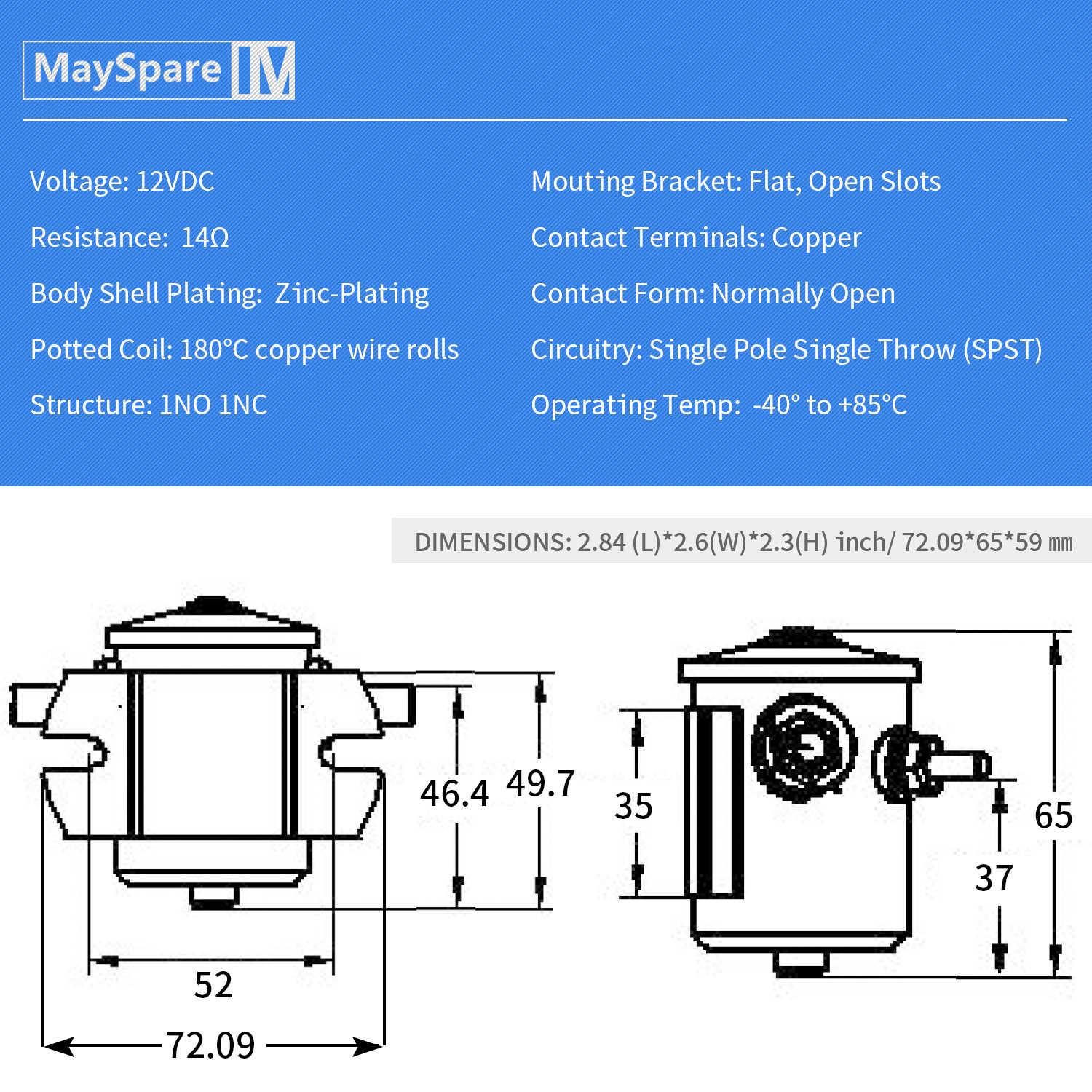

Dimensions: 2) 5/16-24 Contact Terms/ 2) 10-32 Terminal/ The size of the mounting hole: 5/16 x 19/32, 2-13/64 on centers.
Rated Current is 150A/ SPST, one circuit, and off-on.
The ignition coil wire is 180℃. The outside of our cover is environmentally plated, and the high-quality sealing device can prevent the solenoid valve from being affected by external factors, which can extend the product's service life.
The average working current of the electromagnet is 80A. / If you need this product to work longer, don't hesitate to get in touch with us to customize the product
SKU |

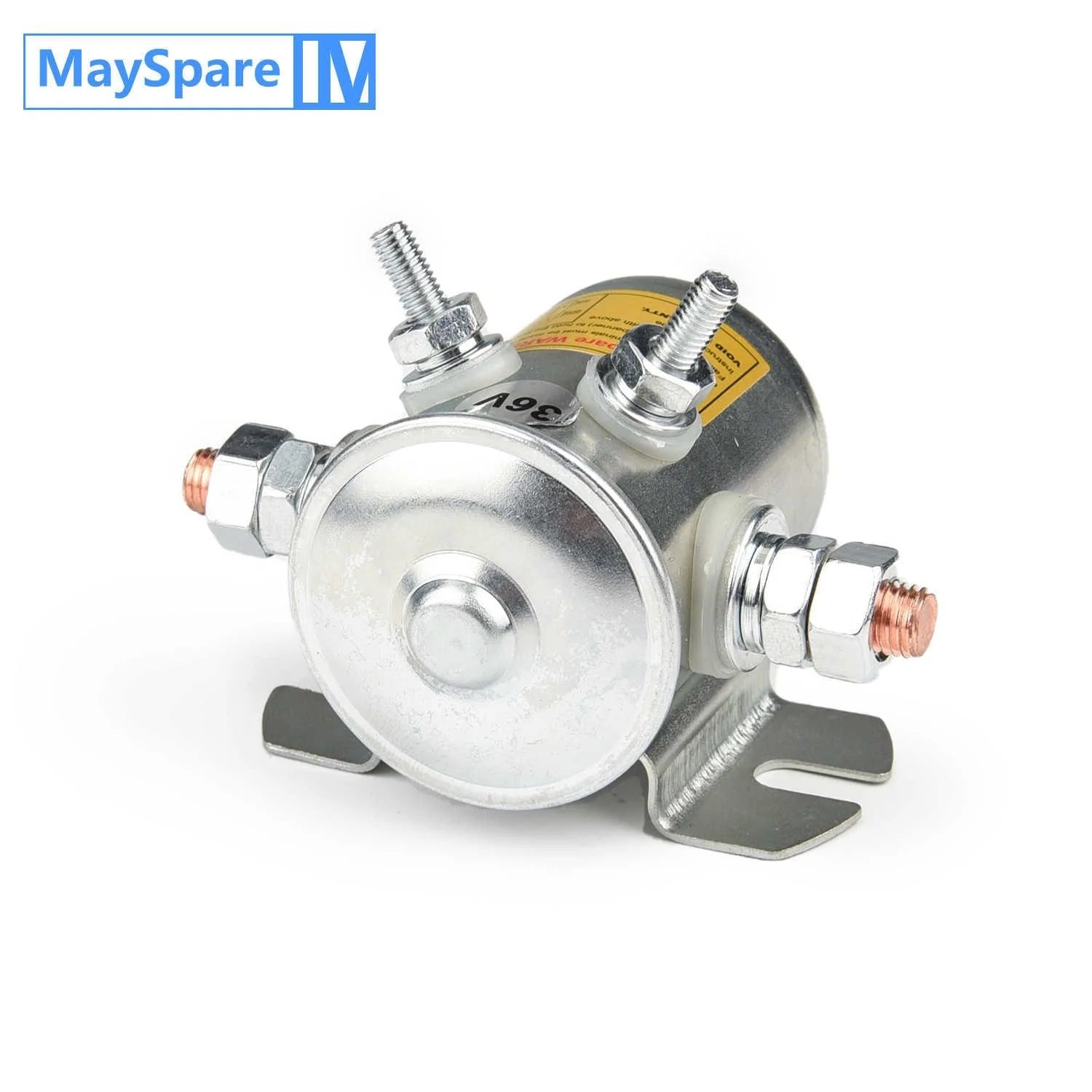

XR-2061-36V |

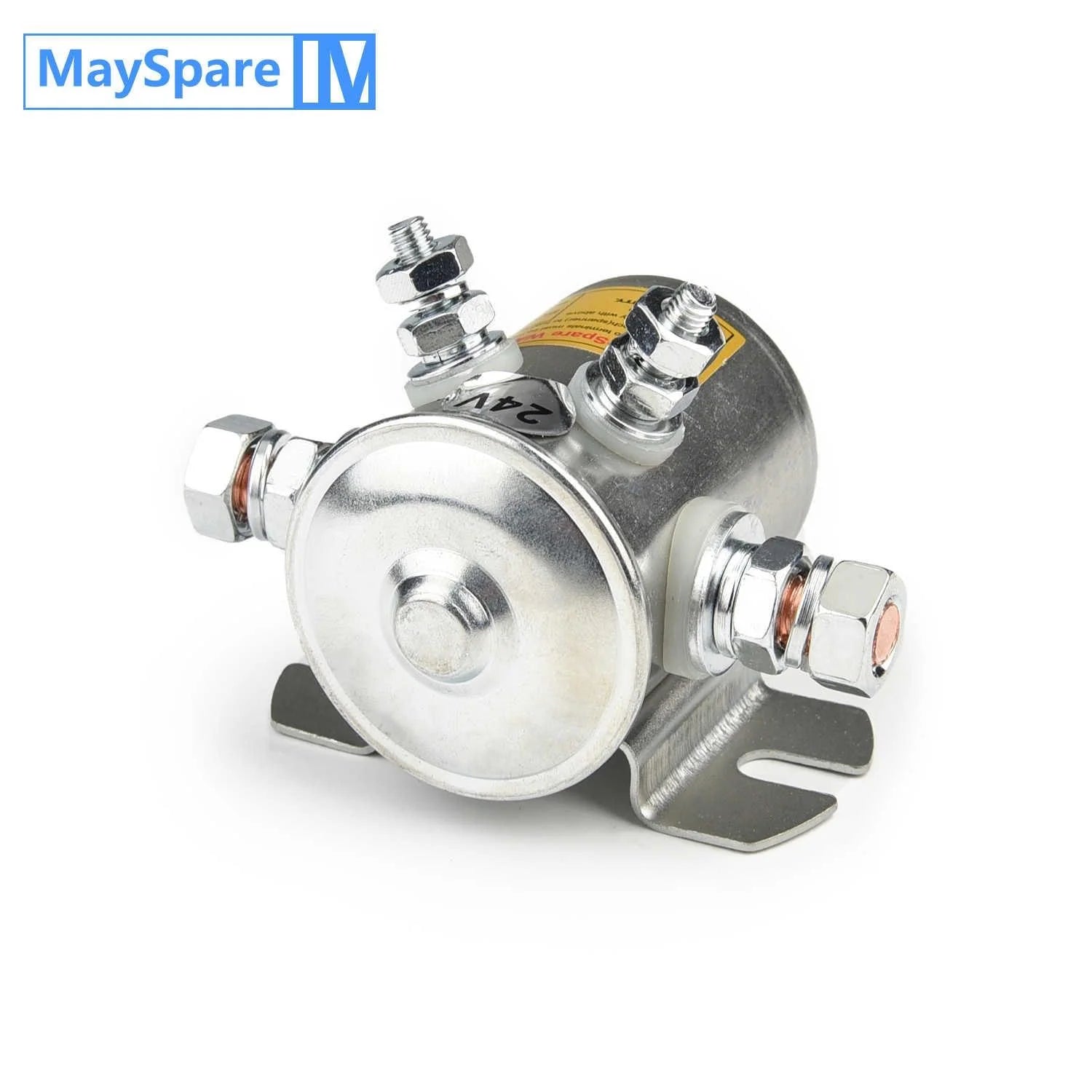

XR-2061-24V |
XR-2061-12V |
XR-2136 |
Voltage |
36VDC |
24VDC |
12VDC |
12VDC |
Resistance |
18Ω |
16Ω |
14Ω |
14Ω |
Max Transient Flash Current |
300amp |
200amp |
300amp |
200amp |
Body Shell Plating |
Zinc-Plating |
Zinc-Plating |

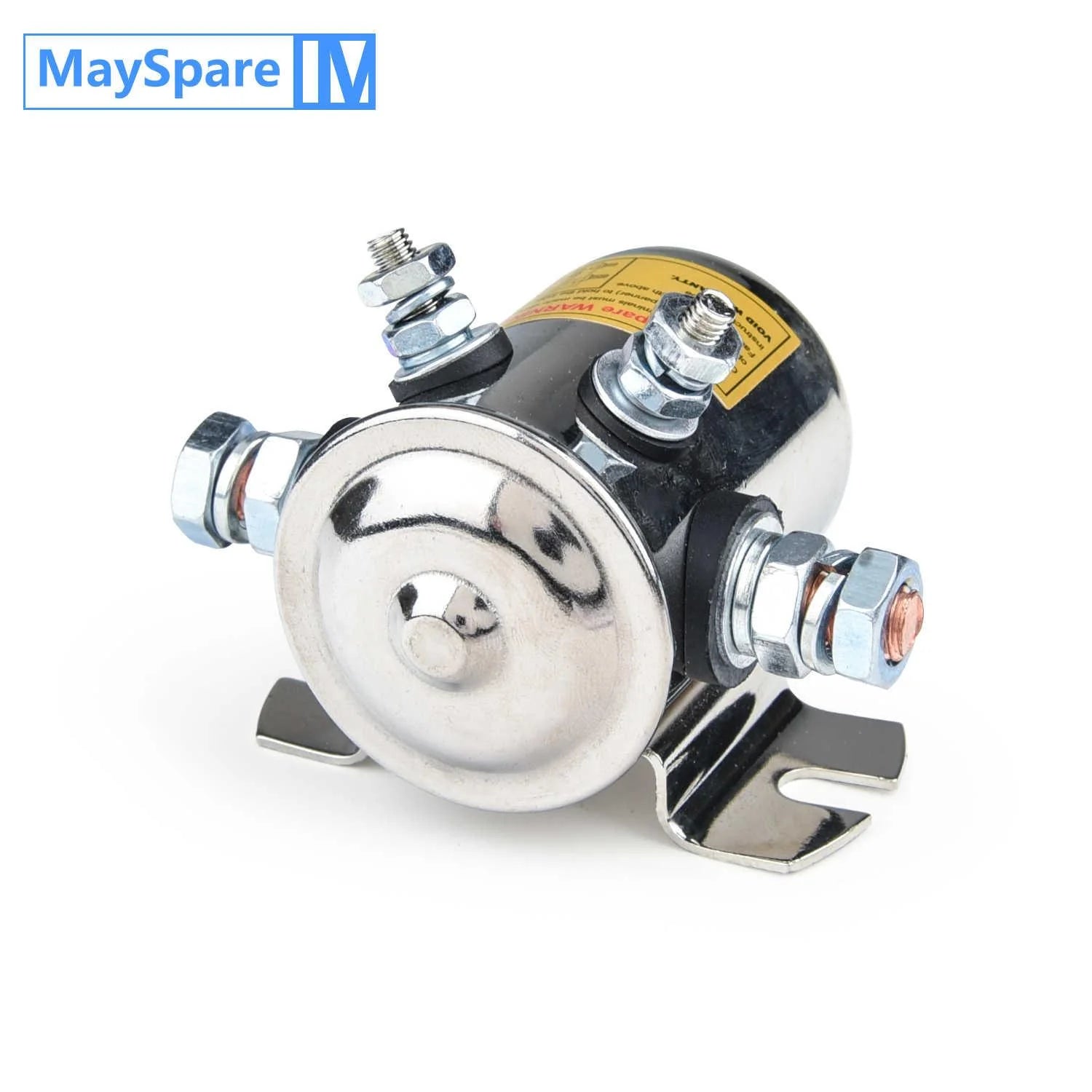

Nickel-Plating |
Zinc-Plating |
Replaces |
70-120224, 3016, 11761-G1, 27855-G01, 27855-G02, 31680-G1, Cole Hersee 24080, E-Z-Go 11761GA |
5945-01-516-0446 5945-00-081-9491 |
70-111224 3635820 1114208 1114218 1114223 1114534 1114547 |
|
Heavy Duty |
The internal 180°C copper coil can make the conductivity of the product more superior Maximum transient currents of 300 amps can be reached |

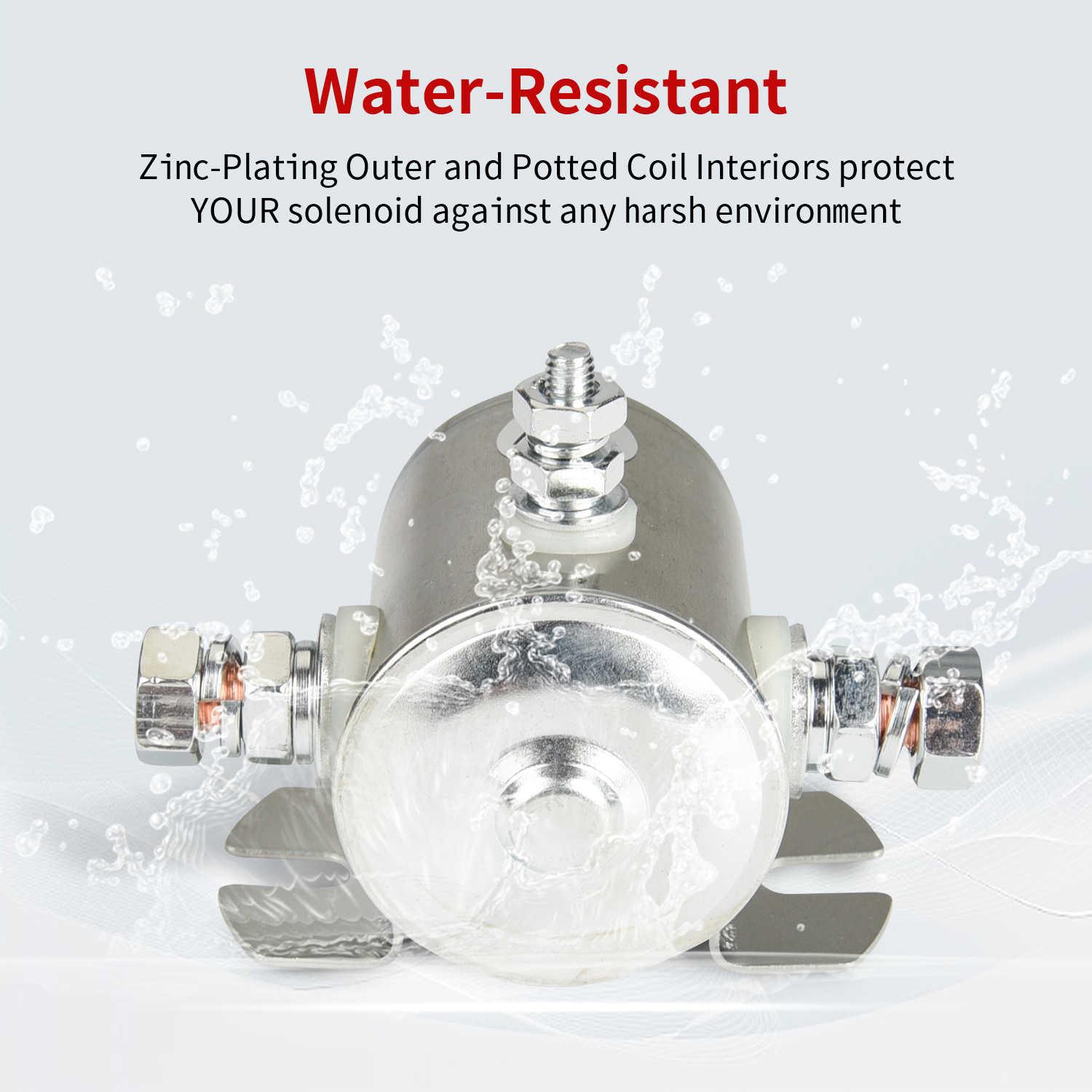

Waterproof
|
The solenoid valve is protected by an external galvanized and an internal encapsulated coil, which can be unaffected on rainy days, but cannot be immersed in water for a long time. |
Dustproof
|
High-strength sealing does not allow fine substances such as dust and sand to enter the solenoid valve and damage the solenoid valve |
Replacement |
100% OEM Match |
When the coil is energized, the core is magnetized to generate a large enough electromagnetic force to suck the plunger and close the control circuit.
When the coil is de-energized, the electromagnetic attraction disappears, the plunger returns, and the control circuit is disconnected.
Item Weight: 12.3 ounces
Package Dimensions: 3.58 x 3.03 x 3.03 inches
Country of Origin: China
Is Discontinued By Manufacturer : No
Exterior: Metallic Finish
